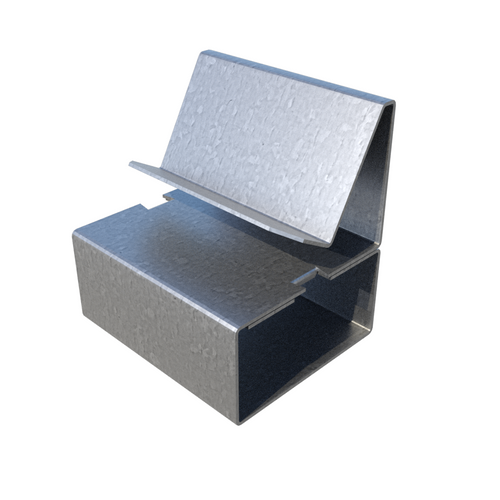

The CB Clip provides a smarter, cleaner way to achieve fire-resistance protection for structural columns and beams. Designed for speed and simplicity, these clips allow drywall to be securely installed around columns and beams without the need for tools, specialized labor, or messy spray applications.
The clips snap into place by hand, creating a reliable friction-fit connection that quickly forms a framework ready to receive gypsum board. This streamlined approach significantly reduces installation time while helping maintain consistent, code-compliant fire-resistance assemblies.
By eliminating the need for spray-applied fireproofing, this system improves jobsite efficiency, reduces cleanup, and minimizes coordination delays. The result is a faster, more controlled installation process that supports both performance and productivity.
Key Features
- Labor Savings
Simplified installation reduces labor time and skilled labor requirements – up to 65% faster - Clean Alternative to Spray Fireproofing
No overspray, no mess, and no additional cleanup required - Consistent, Code-Compliant Performance
Designed to support fire-rated assemblies using gypsum board systems
Product Data & Ordering Information
Packaging: 60 pcs/box
Material: 33 ksi
Min. Base Metal Thickness: 0.018 inch
Protective Coating: G60
Dimensions: 2-3/8" x 2" x 2-1/2"
Weight: 0.18 lbs/ea
| Fire Rating | Application | UL Design Numbers |
|---|---|---|
| 1 Hour | Column | X528 |
| 2 Hour | Column | X517, X520, X523, X528, X535 |
| 3 Hour | Column | X513, X528, X535 |
| 4 Hour | Column | X522, X535 |
| 2 Hour | Beam | N501, N502 |
| 3 Hour | Beam | N505 |
